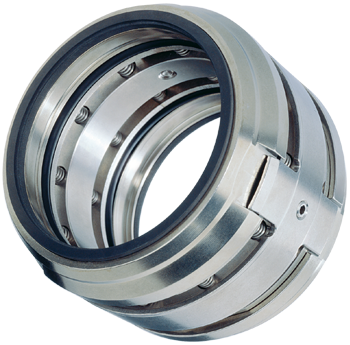

Mechanical Seal suitable for dry running EV / EDV
Mechanical seal suitable for dry running.
توضیحات
Solution for corrosive fluids are widely used in chemical industries on centrifugal pumps. Dry running version is available for top entry mixer.
EV is an external seal with multi-springs so that they are not rotationally dependent. Body and rotary ring must be mounted separately and have not metallic parts in contact with the process.
Features
- Single seal
- Bi-directional
- Balanced
- External
- Resistant to acids and bases
- Can be fitted on straight shaft
- Configured with FLUIGAM (energized dynamic o-ring)
توضیحات تکمیلی
| قطر | 105 – 200 (mm) |
|---|---|
| فشار | 0 – 75 (bar g) |
| سرعت | 0 – 20 (m/sec) |
| دما | '-100 – 200 (°C) |
